Scan Antenna IOT868 low profile ISM band 2m
The slim design with integrated cable, where cable length and connector can be specified at time of order, gives a high grade of flexibility in installation projects, where time is of essence.
The look is designed to be as unobtrusive as possible when mounted in the utility room.
Place it vertically outdoors with the cable downwards – a simpler installation of a high performing antenna is difficult to get.
257,14 DKK
All prices are excl. VAT
Please contact us for delivery
Place order and complete checkout. We provide the leadtime within 24 hrs.

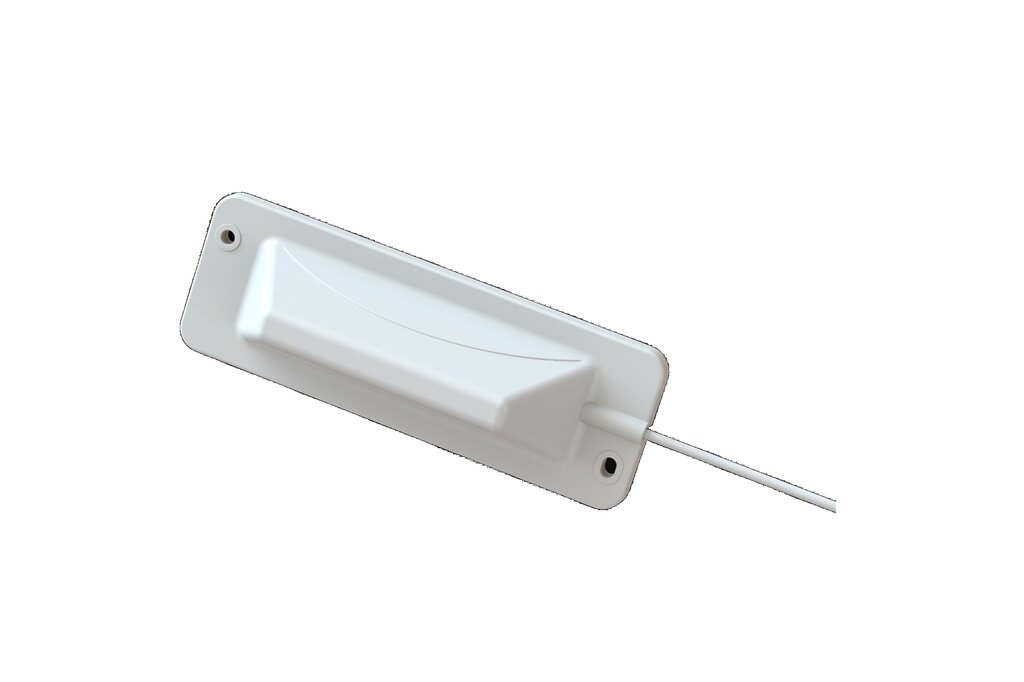

IOT868-ScanAntenna Wall Mounted Low Profile IOT Antenna
Slim IOT/M2M antenna designed for e.g. LoRa, Sigfox and Wireless M-Bus technologies
Especially made for the 868 MHz ISM band
2 m RG174 cable + SMA-male (Poly bag)
Easy mounting on vertical surfaces
Simple and discreet design
No ground plane needed
Frequency: 860 – 876 MHz (ISM and other adjacent bands)
Bandwidth: 16 MHz
| Weight | 0,08 kg |
|---|---|
| Weight (kg) | |
| Cable | |
| Impedance | |
| Frequency | |
| dangerousgoods | |
| Gain | |
| Material | |
| Polarisation | |
| Mounting | |
| Connection 1 | |
| Brand | |
| Max. Power | |
| Operation temp. (°C) |
