When installing, please refer to the manual, as the relay is directional = it only allows current to flow in one direction, ensuring proper flow of energy to the vehicle start battery.
Current is limited to 50A to avoid excess energy to flow.

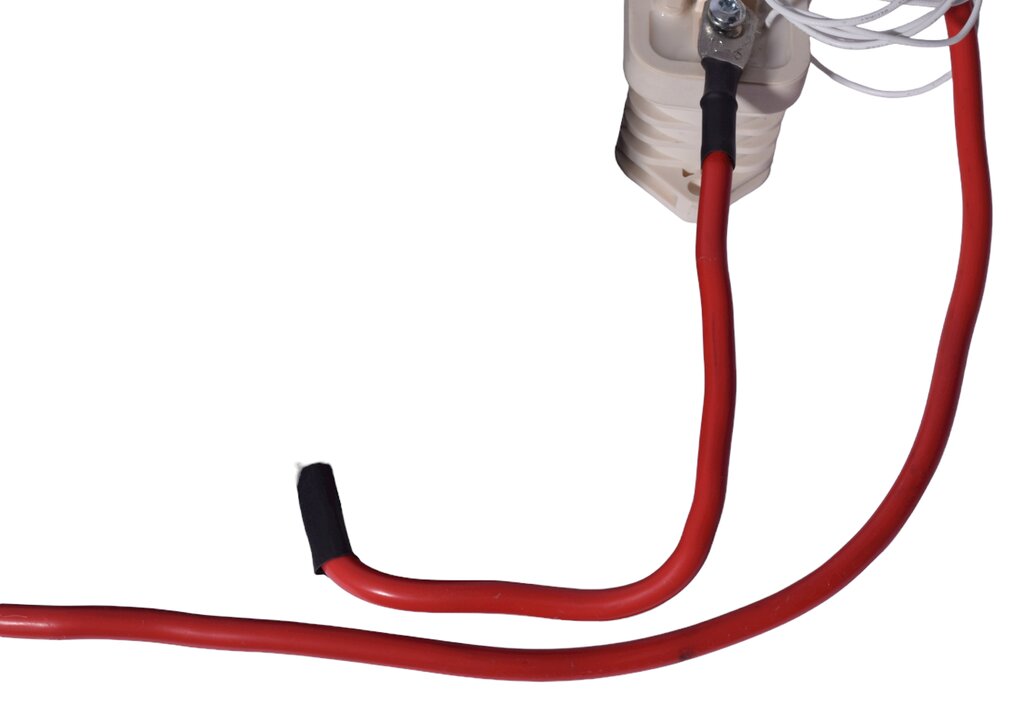

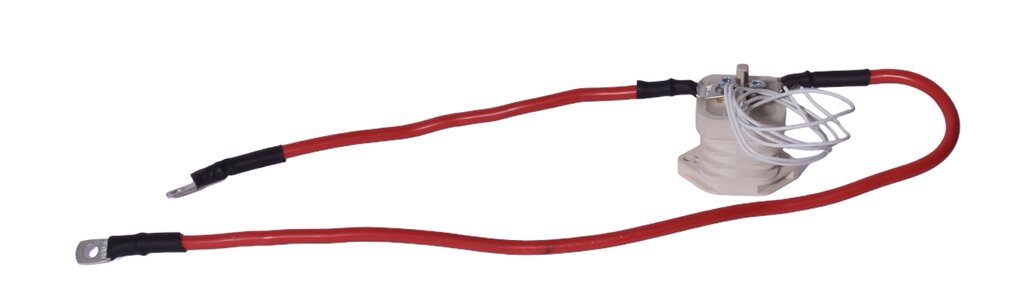

The relay is supplied including wires with cablerings, which fit the terminals B+ and Out+ on the KISAE DMT1250.
Terminal 1 on the relay must be connected with Out+
Terminal 2 on the relay must be connected with Battery +
One white wire connects to ground
The other white wire connects to 12V+ via a spring operated push button.
Please refer to wiring diagramme.
