Phocos Sun regulator Solar CX 12/24V DC 40A

CXN series (40 A)

Built-in 1 Year Data Logger for System Analysis

Choose between 5 load disconnect algorithms

Temperature compensated 3 Stage (Boost/absorption/

float) PWM Series Regulation

Automatic 12/24 V detection

0,00  DKK

All prices are excl. VAT

Product no. CXN4011 Category

In stock
Will be shipped in 1-2 Days

Contact Awilco for price.

Click here to be redirected to our contact page.

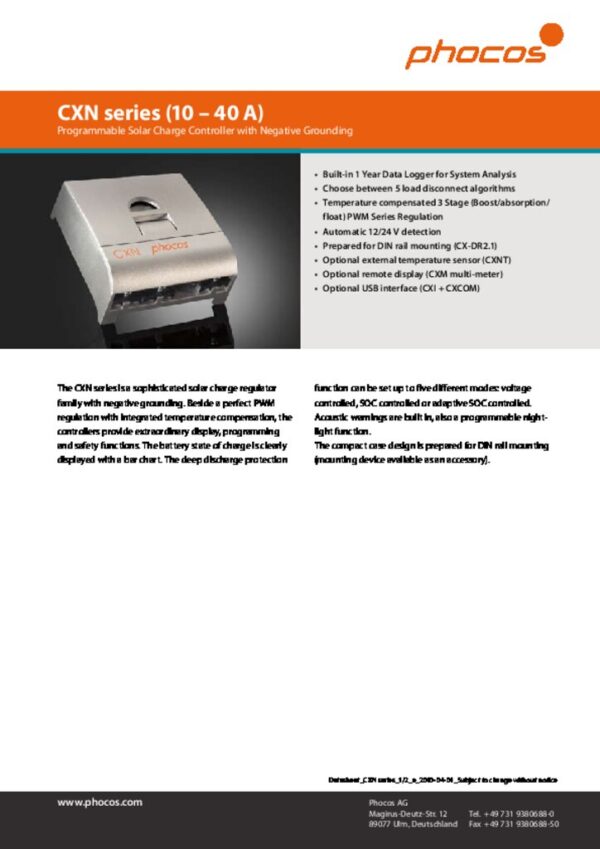

CXN series (40 A)

The CXN series is a sophisticated solar charge regulator family with negative grounding. Beside a perfect PWM regulation with integrated temperature compensation, the controllers provide extraordinary display, programming and safety functions. The battery state of charge is clearly displayed with a bar chart. The deep discharge protection function can be set up to five different modes: voltage controlled, SOC controlled or adaptive SOC controlled.

Acoustic warnings are built in, also a programmable nightlight function.

The compact case design is prepared for DIN rail mounting (mounting device available as an accessory).

Weight 0.3 kg
Ampere

40A

Output Voltage

Weight (kg)

Length mm

Width mm

Height mm

dangerousgoods
