FRIWO 10S3P 36,5V 8550 mAh SM-Bus connector TBD

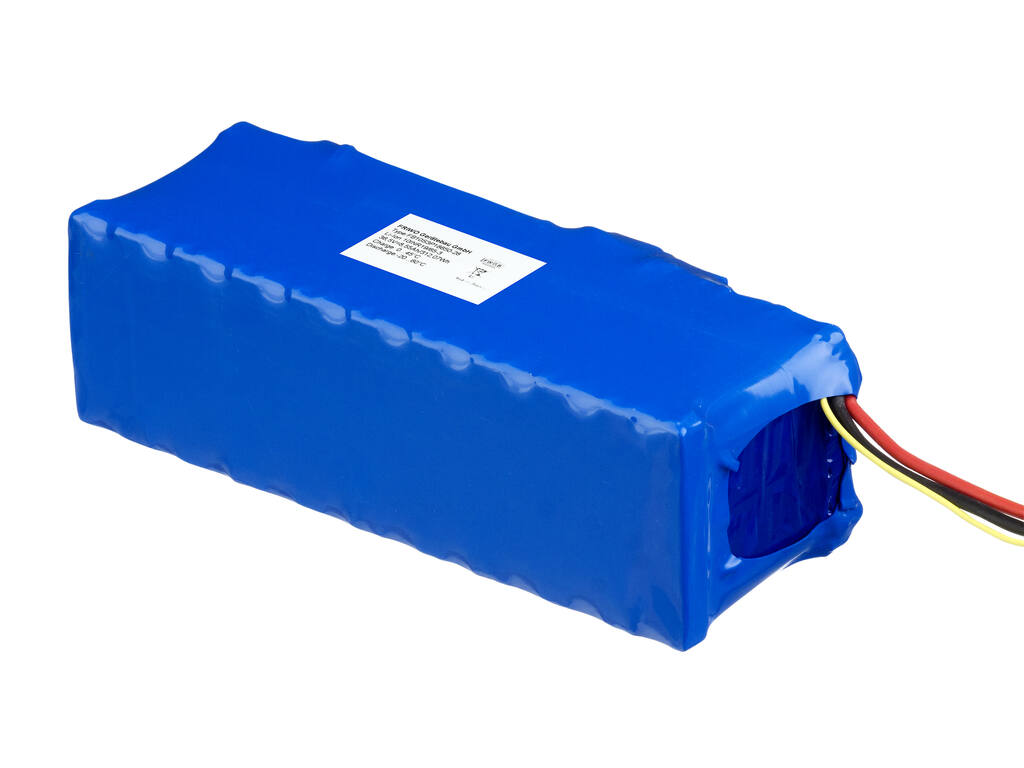

Lithium-Ion Battery Pack 10S3P with SMBus interface

Nominal voltage 25,55V
Charge current 2,75A
Capacity 5,7Ah

Cell type Samsung INR18650-29E

In compliance with (IATA) SOC directive
UN38.3 and IEC62133 approved

0,00  DKK

All prices are excl. VAT

Product no. 5500008 Category

Please contact us for delivery
Place order and complete checkout. We provide the leadtime within 24 hrs.

Contact Awilco for price.

Click here to be redirected to our contact page.

Solutions from a Single Source


As a system supplier, FRIWO offers both chargers and battery packs. In addition to our range of standard solutions, we can design and manufacture custom solutions for stationary and mobile applications. And they all carry the “Made in Germany” label.  All standard packs are UN38.3 and IEC62133 approved.

FRIWO’s standard portfolio uses premium cells. Our battery packs are equipped with an appropriate protective circuit, which monitors the charging, and discharging process, reducing the stress on cells and significantly extending the life of the pack. FRIWO also offers solutions with active cell balancing, to ensure maximum use of capacity. Combined with FRIWO chargers, this results in an optimally balanced overall system.

FRIWO offers extensive development expertise for custom solutions. This allows the company to work closely with customers to create application-specific battery packs using cells from various manufacturers. Along with the optimum configuration of cells, we are capable of implementing complex battery management systems (BMS) including a range of communication systems and parameter queries. Among other things, this makes it possible to indicate the “health” of a battery pack or its charge status, or to implement cell authentication. Along with the capacity to develop and manufacture custom solutions, FRIWO has an internal licensing department, which works closely with the relevant authorities to secure the necessary official approvals.

See FRIWO bundle matrix – system solutions from a single source

Overview Li-Ion chargers

Weight 1,45 kg
Weight (kg)


Cell type


Max. discharge current continously (A)

Width mm

Height mm

Output Connector

Length mm


Battery technology
