Alfatronix Charger Wireless integrated V 9-32V DC 6mA

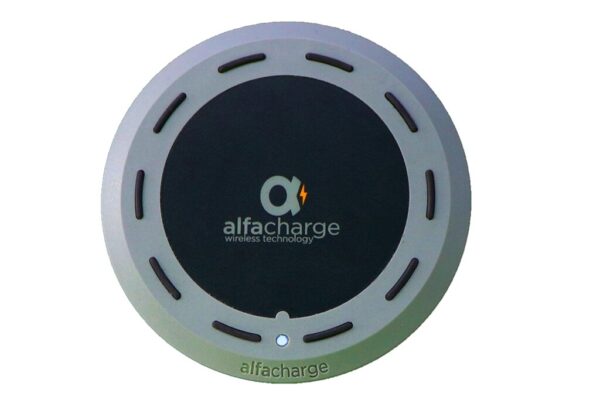

Alfacharge Automotive Wireless Charger AL3-V

Passenger accessible wireless charger for vehicle installation.
Designed for integration into passenger vehicles as buses and coaches.

Wide input of 9-32V DC
Output nominal 5W – 6mA
Charge all QI qualified devices
Easy installment
CE marked
Fuse protected

669,64  DKK

All prices are excl. VAT

Product no. AL3-V Categories , ,

In stock
Will be shipped in 1-2 Days

PASSENGER ACCESSIBLE WIRELESS CHARGERS FOR VEHICLE INSTALLATIONS

Wireless charging is becoming more and more the preferred method of maintaining battery power in mobile telephones with most of the latest designs from the major manufacturers including this feature as standard.

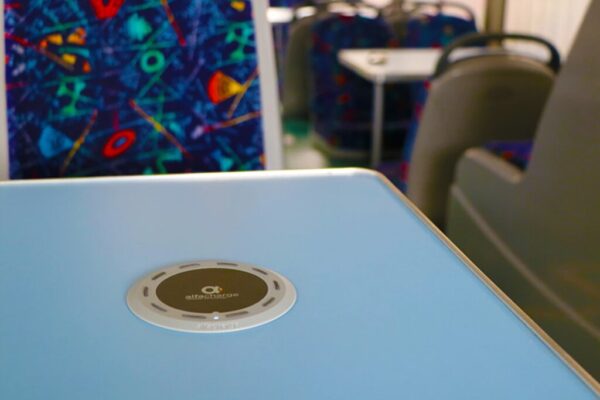

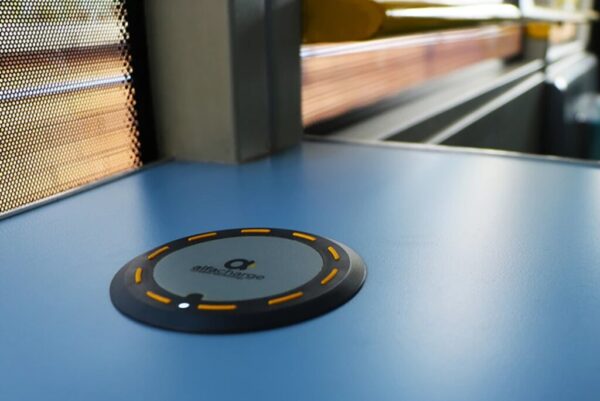

The AL3 wireless charger is designed for installation into vehicles such as buses and coaches to allow passengers to charge their mobile telephones while on the move. Typical installations are into table tops. An 80.0mm hole is required in the table and the unit is then installed through the table and secured underneath providing an unobtrusive and functional enhancement of the passenger experience. These units make a complimentary addition to the AL1 integrated charger modules and can be installed at vehicle build stage or as part of a retrofit activity as required.

The wireless receiver of the charging unit will automatically detect the presence of suitably enabled mobile phones and will typically charge through the phone case up to 3.0mm thick.

 Designed for integration into passenger vehicles.

  • Accepts both 12Vdc and 24Vdc
  • Approved to EN50498 and ISO7637-2. E marked (Reg10) and CE marked
  • Phone communicates every millisecond to establish correct charge
  • Foreign object detection & activation
  • Convenient wide input of 9-32Vdc in one standard casing
  • LED to confirm correct operation



THE RANGE

The Alfacharge range has been designed to meet the rigorous standards required for on board commercial vehicle applications including EN50498, ISO7637-2 and is both CE and E marked (Reg10). The casings are made from V0 rated (self extinguishing) high impact polycarbonate and the PCB is populated by computer controlled SMT for maximum accuracy and durability.

WARRANTY

The AL3 Series of wireless chargers are manufactured using rugged components to provide years of service in demanding commercial environments and are covered by a three year return to base warranty.

Weight 0.16 kg
Weight (kg)

Switch-off criteria Delta-U

Efficiency (%)

Over Voltage Protection

Operation temp. (°C)

ON diode

Storage temp. (°C)

Standards

Approvals

2014/30/EU The general EMC directive Regulation 10 The automotive directive 93/68/EEC The CE marking directive

IP class

Protection class

Length mm

Width mm

Height mm

Humidity (%)
