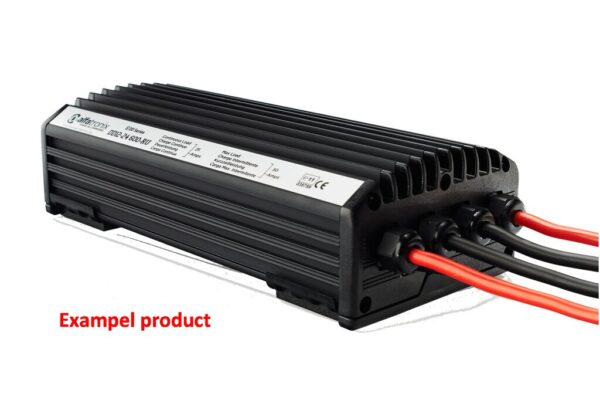

Alfatronix Converter DD 12V DC - 24V DC 16A Ruggedised

Product number:
DD1224400RU

Alfatronix Converter DD 12V DC – 24V DC 16A Ruggedised

3.321,43  DKK

All prices are excl. VAT

Delivery:

Please contact us for delivery
Place order and complete checkout. We provide the leadtime within 24 hrs.

DD “UP”  VOLTAGE CONVERTER
12V DC – 24V DC,  Ruggedised

Input voltage range 17-32V DC
Output voltage 13,6V DC
400 Watt § 16A

Ruggedised casing for harsh environments.

Easy mount with “Click’n’ Fit” mounting clip

Protected from dust, water and impact to IP65

ALFATRONIX provides lifetime guarantee

Input voltage12V DC
Output Voltage24V DC
Ampere16A
Output Power400W
ON diode0
Isolation0
Weight (kg)1.510
Length mm233.00
Width mm125.00
Height mm74.00
BrandAlfatronix

More about the product

DD IP65 SERIE ISOLATED AND RUGGEDISED

Harsh Environments

These products offer the same great electrical characteristics as our PowerVerter and DD Series, but are provided in ‘Ruggedised’ casings for use in harsh environments. Using the well-known Ingress Protection System, the product range has been tested and subjected to demanding environmental conditions and awarded a rating of IP655.

All Ruggedised PowerVerters are enclosed in a durable aluminium extrusion. The low mass Surface Mount Technology components are also less prone to damage from vibration and shock, further increasing the reliability of the units.

Innovative Technology

Utilising the same GORE-TEX® technology that is used in extreme outdoor clothing, the Ruggedised range is able to breathe freely, without compromising the water tight and dust tight seal. This free-flow of air ensures that the pressure remains equal inside and outside the unit thus allowing it to operate within a large temperature range and at varying altitudes safely.

Fast Installation

All the products fit onto a ‘Click ‘n’ Fit’ mounting clip which is fixed in three points allowing it to be mounted on uneven surfaces. It is easy to fit the clip into awkward places, and then simply click the unit into position.

Anti-Vibration

As well as being dust and water tight to IP65 the units are vibration resistant. They have an anti-vibration cable gland fitted into a hexagonal recess to prevent unwanted knocks from loosening it, so they can be fitted into rugged environments care-free.

Additional Features

The RU range has the same features as the standard PV & DD range, but in addition, they also offer the following benefits:

· Dust, water and impact resistant to IP655

· Breathable vent to prevent unwanted build up of pressure

· Anti-vibration cable gland

· Supplied with 1m of cable as standard

Product Variants

Many PowerVerter-RU and DD-RU Series products can be configured with alternative output voltages etc, for specialist applications. Please call our sales team to discuss your requirements.

HOW TO READ THE PRODUCT CODING

DD  DC input and output

1224  Nominal 12V input / 24V output
400 400W capacity unit
RU  Ruggedised

Converter overview or find your product in our Selection Table

Read more about our premium partner Alfatronix
