Type | Dimmbox |
---|---|
Output Voltage | 15-50V DC |
Ampere | 5000mA |
Output Power | |
Weight (kg) | 0.057 |
Length mm | 153.00 |
Width mm | 30.00 |
Height mm | 21.00 |
Brand | FRIWO |

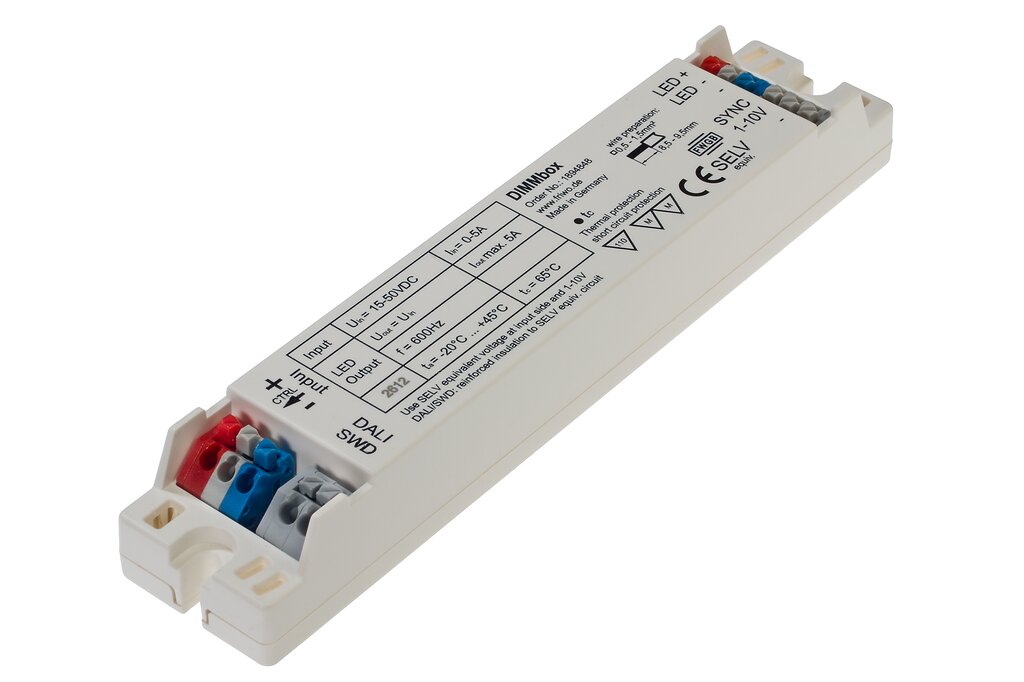

FRIWO Dimmbox
Product number:
1894848
1894848
FRIWO Dimmbox
Delivery:
Please contact us for delivery
Place order and complete checkout. We provide the leadtime within 24 hrs.
DIMMbox
15–50 V| 5A
DIMMbbox control range 10-100%
Dali, Push-Dim or 1-10V
Overload and overvoltage protection
Continuously short circuit proof
MTBF > 200.000 hours
Made in Germany
FRIWO provides 5 year warranty
More about the product
Functional description DIMMbox
The DIMMbox and the connected LED(s) are powered by the power supply / LED driver at the input if the DIMMbox.
The dimming function is achieved by pulse width modulation control (PWM) at the LED minus output. Switching frequency is around 600Hz.
